商品の詳細:
お支払配送条件:
|
| 電源: | 電気 | 温度範囲: | -200~650℃ |
|---|---|---|---|
| 電圧: | 12-480V | プローブ材料: | ステンレス鋼かニッケル |
| スタイル: | PT100、PT1000、PT500、K、J | 量の要素を組み合わせる: | シンプレックス/デュプレックス |
| 発熱体: | ニクロム抵抗 | 取り付け: | 糸/フランジ/どれも |
| 使用法: | 温度センサー | 特徴: | 経済的 |
| タイプの端子箱: | 反スプレー/防水 | 絶縁: | MGO |
| ハイライト: | K type thermocouple RTD,Multi core thermocouple sensor,Durable high response thermocouple |
||

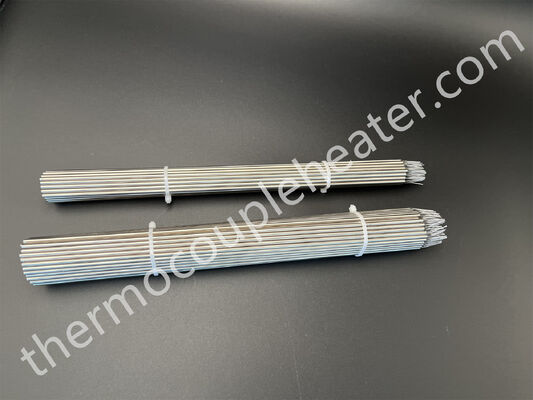

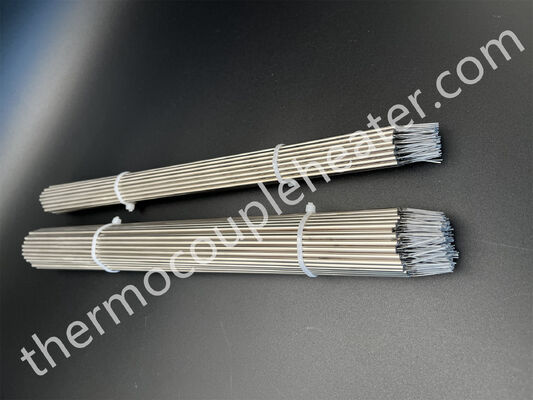

High Response Stronger Durable multi core K Type semi-finished Thermocouple
Description:
1) thermocouple consists of two dissimilar metals joined together at one end. When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the emperature. The calibrations are K, N, E.J, T, S, R, B. Each calibration has a different temperature range.
3) Magnesium Oxide insulated thermocouples, commonly referred as MgO thermocouples, are used in many process and laboratory applications. They are available in all thermocouple element types, a wide variety of sheath diameters and materials, they are rugged in nature and bendable, and their fairly high-temperature ratings make MgO thermocouples a popular choice for a multitude of temperature measuring applications.
Name: Mineral Insulated Cable
Type: K, N, E, J, T
Conductor material: NiCr-NiSi,NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan
Insulator: 99.6% high purity MgO
Core number: 2, 4, 6
Sheath material: SS321(SS304), SS316, SS310, INCL600,601, Nicrobell,SS446,SS347,800,800H,825,INCONEL601,INCONEL625,GH4145 and GH3128
Dia(mm): from 0.25mm to 12.7mm
Application: connecting with thermocouple and instrument machine
MOQ: 100m
Certificate: ISO,SGS
Making sample time: all type in stock
Trade term: FOB, EXW, CIF, CFR
Payment term: T/T,Western Union, L/C
Advantage: Competitive price and best service
| Product Name | Code | Type | Sheath Material | Outer Dia(mm) | Temperature |
| Ni Cr-Ni Si | KK | K | SS304 | 0.5-1.0 | 400 |
| SS321 | 1.5-3.2 | 600 | |||
| SS316 | 4.0-8.0 | 800 | |||
| 0.5-1.0 | 500 | ||||
| SS310 | 1.5-3.2 | 800 | |||
| INCL600 | 4.0-6.4 | 900 | |||
| 8.0-12.7 | 1000 | ||||
| Ni Cr Si-Ni Si | NK | N | SS304 | 0.5-1.0 | 400 |
| SS321 | 1.5-3.2 | 600 | |||
| SS316 | 4.0-8.0 | 800 | |||
| 0.5-1.0 | 500 | ||||
| SS310 | 1.5-3.2 | 800 | |||
| INCL600 | 4.0-6.4 | 900 | |||
| 8.0-12.7 | 1000 | ||||
| Ni Cr-Konstantan | EK | E | SS304 | 0.5-1.0 | 400 |
| SS321 | 1.5-3.2 | 500 | |||
| SS316 | 4.0-8.0 | 800 | |||
| Fe-Konstantan | JK | J | SS304 | 1.0 | 300 |
| SS321 | 1.5-3.2 | 500 | |||
| SS316 | 4.0-8.0 | 800 | |||
| Cu-Konstantan | TK | T | SS304 | 1.0 | -200——100 |
| SS321 | 1.5-3.2 | 100-200 |
