Thermocouple Type J L-Shape Probe For Specific Orientation Measurement

Thermocouple Type J L-Shape Probe For Specific Orientation Measurement
Thermocouple Type J L-Shape Probe For Specific Orientation Measurement Thermocouple Type J L-Shape Probe For Specific Orientation Measurement Thermocouple Type J L-Shape Probe For Specific Orientation Measurement Thermocouple Type J L-Shape Probe For Specific Orientation Measurement

大画像 :  Thermocouple Type J L-Shape Probe For Specific Orientation Measurement

商品の詳細:
起源の場所: 中国
ブランド名: GME
お支払配送条件:
最小注文数量: 10個のPC
パッケージの詳細: 標準的な輸出の場合
受渡し時間: 5〜10営業日
支払条件: L/C、T/T、Western Union、PayPal
供給の能力: 1か月あたり100,000個
詳細製品概要
シース材料: ステンレス鋼 タイプ: 熱電対かRTD
鉛ワイヤー素材: SSメッシュ/ガラス繊維/PTFE/カプトン,カスタマイズ 調査のサイズ: 直径Xの長さは、カスタマイズした
ハイライト:

Type J thermocouple L-shape probe

,

Thermocouple probe for orientation measurement

,

RTD thermocouple with L-shape design

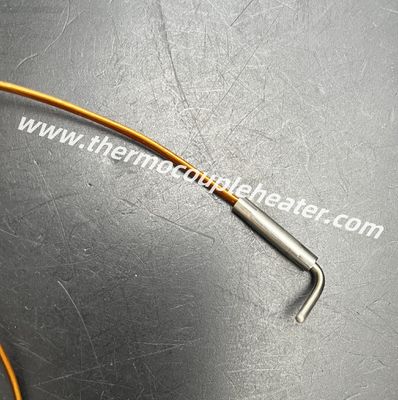

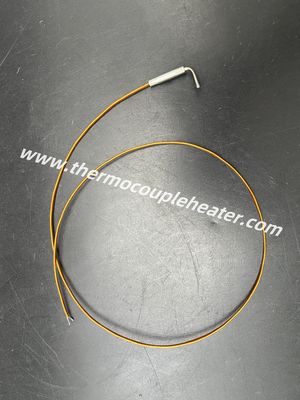

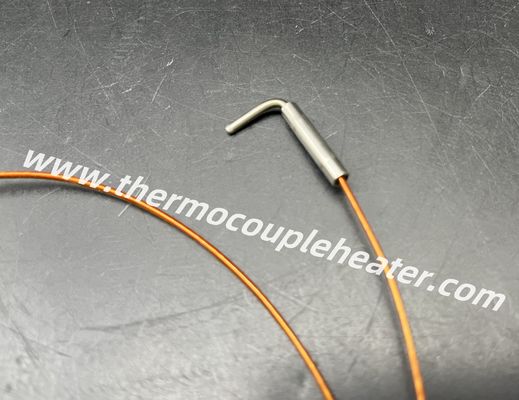

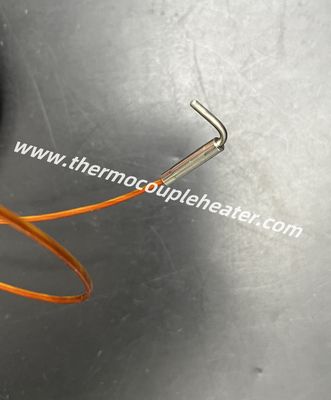

Thermocouple Type J L-Shape Probe For Specific Orientation Measurement





Product Description:



Thermocouples are used in industry for measuring the temperature of gases, liquids or solid surfaces etc., Its usually assembled with indicators, recorders or computers. A thermocouple consists of two dissimilar metals joined together at one end. When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the temperature.



L-shape probe is designed for applications requiring precise temperature measurement in tight or complex spaces, the bent tip ensures the sensing junction is positioned exactly where you need it, maximizing accuracy and reliability.



Specification:


Size Customized
Calibration

Type J, K, T, E, N, S, PT100, PT1000, customized

Sheath Material

Stainless Steel 304 / 310 / 316 / Incoloy

Junction

Ungrounded , Grounded

Cable Insulation SS mesh / Fiberglass / PTFE / Kapton,customized
Cable length

1 M, 2M, 5M...., customized



























Feature:



1. Simple assembly and easy to change;

2. Fast heat response time;

3. High precision measurement;

4. Long service life.





Applicable Scope:

♦ Pipe and ventilation systems
♦ Hydraulic and pneumatic systems
♦ Cooling and heating systems
♦ Water supply and water heating systems
♦ Air-conditioning systems
♦ Automation system temperature mensuration and control
