ホーム 製品カートリッジ ヒーター

Stainless Steel Industrial Electric Rod Resistance Heating Element Cartridge Heater

認証
中国 Wuhan Global Metal Engineering Co., Ltd 認証
中国 Wuhan Global Metal Engineering Co., Ltd 認証
顧客の検討
GME の貴方達は働くために実際によい仕事を、私認めますあなたの完全性、プロ精神および献呈をしています。

—— ティム

それは GME をかなり気持が良い使用、特に私好みますずっとあなたの良質、時間通りの配達および適正価格をです。

—— ルイス

GME は常に有用、専門であり、製品品質は一貫し、満足常にです。

—— Jimit

オンラインです

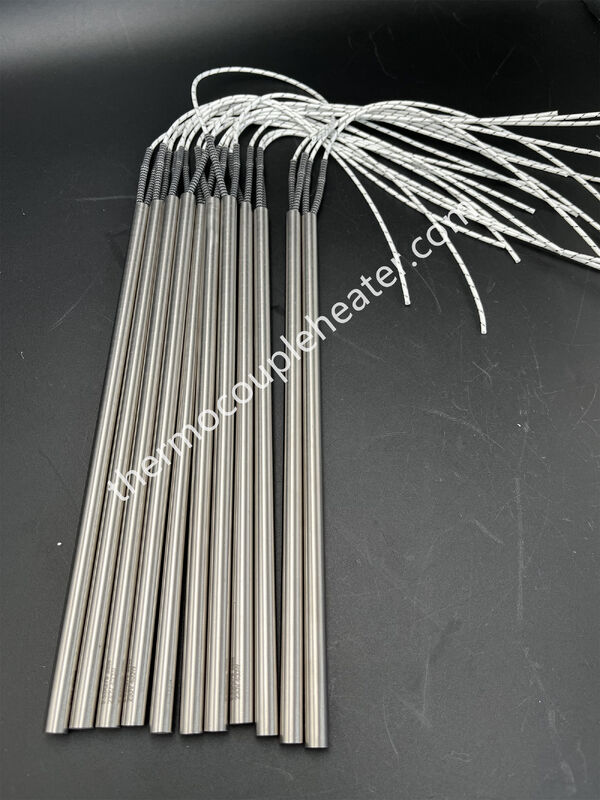

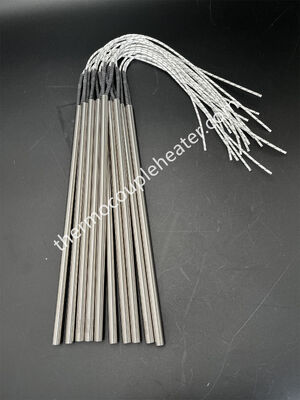

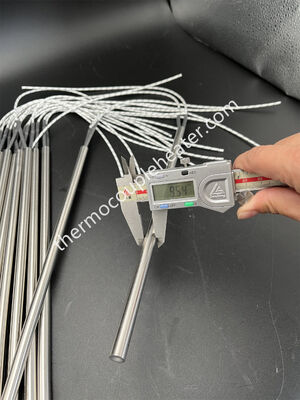

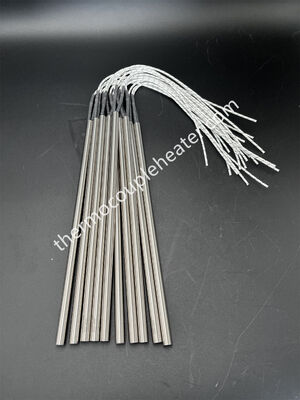

Stainless Steel Industrial Electric Rod Resistance Heating Element Cartridge Heater

Stainless Steel Industrial Electric Rod Resistance Heating Element Cartridge Heater
Stainless Steel Industrial Electric Rod Resistance Heating Element Cartridge Heater Stainless Steel Industrial Electric Rod Resistance Heating Element Cartridge Heater Stainless Steel Industrial Electric Rod Resistance Heating Element Cartridge Heater Stainless Steel Industrial Electric Rod Resistance Heating Element Cartridge Heater

大画像 :  Stainless Steel Industrial Electric Rod Resistance Heating Element Cartridge Heater

商品の詳細:
起源の場所: 中国
ブランド名: GME
証明: ISO/CE/UL/CSA
お支払配送条件:
最小注文数量: 50個
価格: USD 1-100 FOB Shanghai/pc
パッケージの詳細: 箱か木のカートン
受渡し時間: 7~15営業日
支払条件: D/A,D/P,T/T,ウェスタンユニオン,マネーグラム,L/C
供給の能力: 10000個/月
詳細製品概要
リード線: ケイ素、ガラス繊維 Shealthの文書: SS304、SS321、SS316
色: Biackおよび白 ワット容量: +5%, -10%
応用: 油,水,その他の液体など 電源: 電気
電圧: 12-480V 寸法(長さ*幅*高さ): カスタマイズ可能
タイプ: エアー・ヒーター、Cartidgeのヒーター 絶縁: Mgoの粉
ハイライト:

Stainless steel cartridge heater

,

Industrial electric rod heater

,

Resistance heating element cartridge

Stainless Steel Industrial Electric Rod Resistance Heating Element Cartridge Heater



Description:


Cartridge heater is made of single head, electric heating tube to tube is to protect the shell (including not only the head of the stainless steel electric heating tube, copper pipe, all kinds of imported steel), along the central axis uniform spiral tube of high quality electric thermal bonding wire, nickel chromium wire, iron chromium alloy fever), and then fill the gap part closely with good heat resistance, thermal conductivity and the crystallization of the insulation of magnesia powder, with silicone seal on both ends of the pipe, in the other process.






Specification:



A.Nickel chromium resistance wire ensures even, efficient distribution of heat to sheath.


B.Magnesium oxide insulation of specific grain and purity results in high dielectric strength and faster heat-up.



C.According to different use requirements,choose the grade of heating wire,magnesium rod and
pipe.

D.Do not pull or bend the wire forciby.

E.The vicinty of the wire should be controlled below 220℃.


Product Name
right angle cartridge heater
Material
stainless steel
Color
nickel white
Standard
CE/ISO
Grade
SUS201, SUS304, SUS316,
Power
electric
Voltage

customized

Used
air heater,water heater



Application:



* 3D Printers
* Hot runner systems - Heating of manifolds
* Laboratories - Heating of analytical equipment
* PCB Equipment, Smokeless barbecue furnace
* Glass Bending Machine, Hole Punched
* Injection Molding



Stainless Steel Industrial Electric Rod Resistance Heating Element Cartridge Heater 0
