| 材料: | 陶磁器酸化マグネシウム | 色: | 白い/アイボリー |
|---|---|---|---|
| 穴: | 単一、2、4または多穴 | 形: | 丸い,四角形,長方形,円形 |
| 使用法: | 耐火材料として使用する | ||
| ハイライト: | magnesium oxide ceramic insulators,heater element ceramic insulators,electric heater refractory insulators |
||

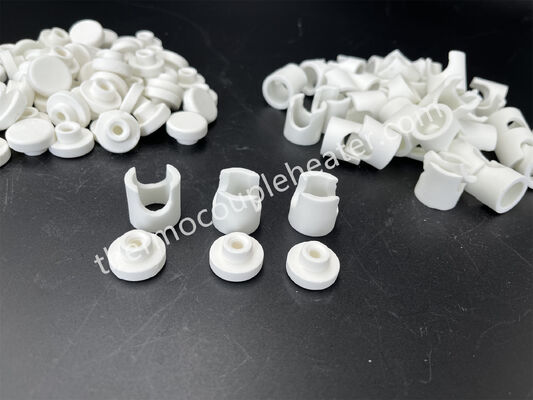

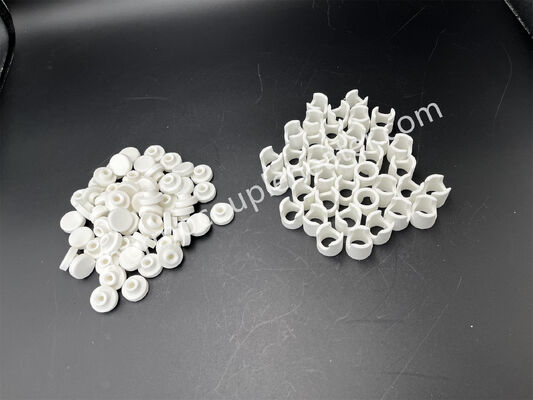

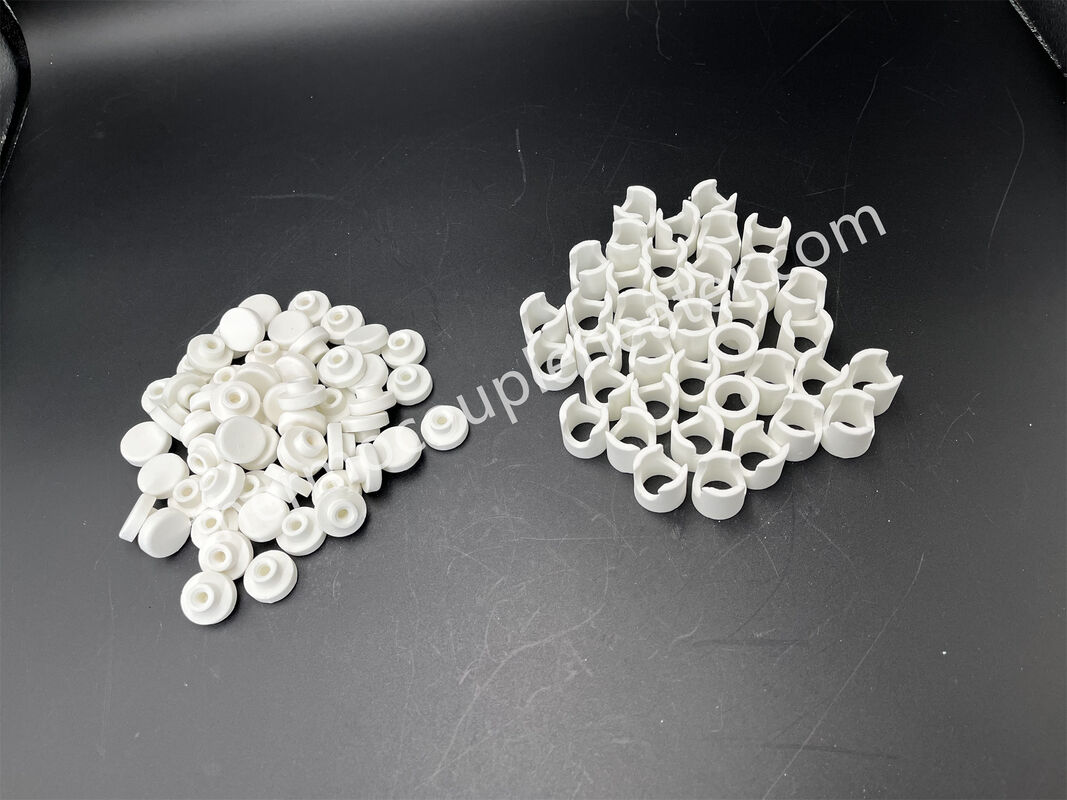

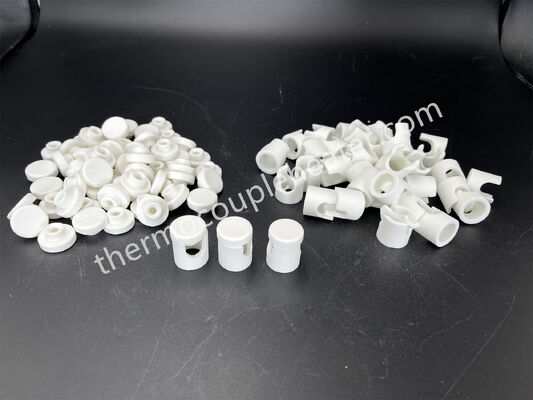

Ceramic Insulators For Heater Elements
| high heat resistance steatite C220 M6 ceramic screw cap Performance | |||||
| Item | Index | Unit | Steatite ceramic | 95 Al2O3 | 96 Al2O3 |
| Physical Characteristics | Bulk density | g/cm3 | 2.7 | 3.2 | 3.6 |
| Water absorption | % | 0 | 0 | 0 | |
| Mechanical Characteristics | Flexural strength | Mpa | 145 | 320 | 340 |
| Hardness Vickers | Gpa | 5.7 | 12.2 | 13.5 | |
| Poisson’s ratio | - | 0.21 | 0.22 | 0.23 | |
| Thermal Characteristics | Thermal conductivity | w/(m.k) | 2.5 | 16 | 24 |
| Electrical Characteristics | Dielectric constant(1MHZ) | - | 6.2 | 9 | 9.4 |
Features:
1) There are many specifications to choose from.
2) Meet various technical requirements
3) Reduce medium loss
4) Good insulation and high temperature resistance
5) High strength
6) Applicable to all electrical products, electric heating products and wear-resistant mechanical parts.
7) Welcome OEM, ODM and OBM
95% alumina ceramic ring al2o3 parts
Ceramic Insulators for Heater Elements
Application :
1). Gas cooker,Water heater,Gas oven, Gas boiler,Air-conditioning and so on.
2). As ceramic parts of flexible pad and channel heaters at operations of pre and postweld heat treatment; Welding process, stress-relieving, pre-heating & post heating, other resistance-heating environment
3). halogen lamps, high and low pressure uv lamps, mercury lamps, uv lamp holders and heating tubes.
4). high-power electrical applicance and all kinds of insulation device.
